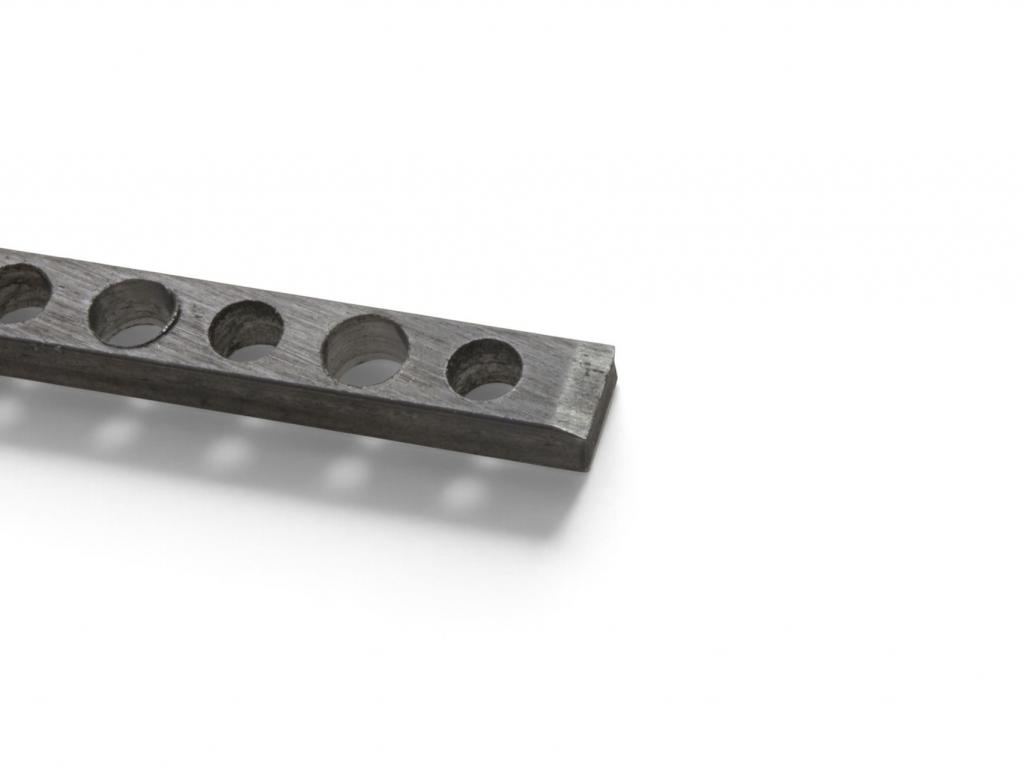

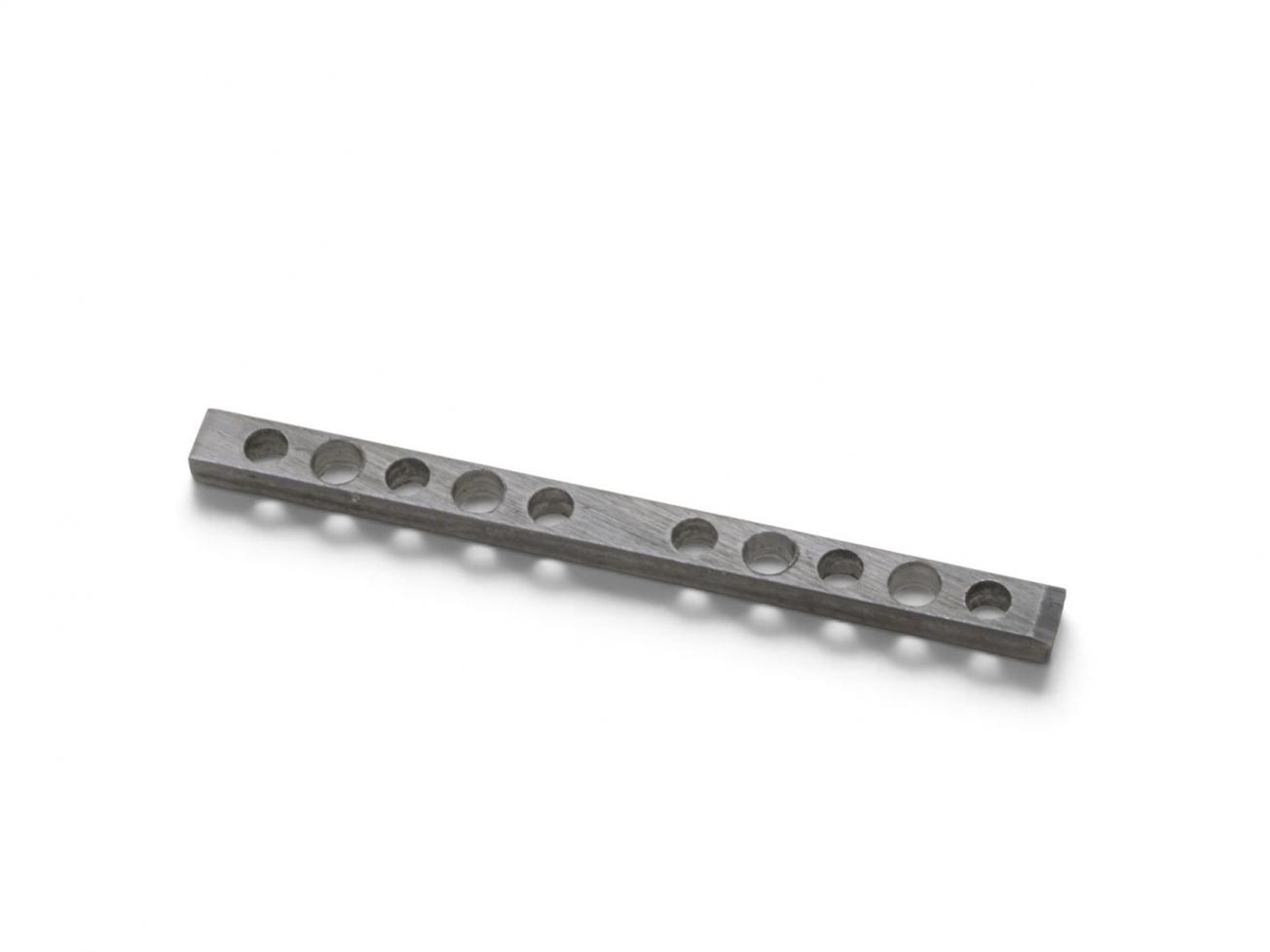

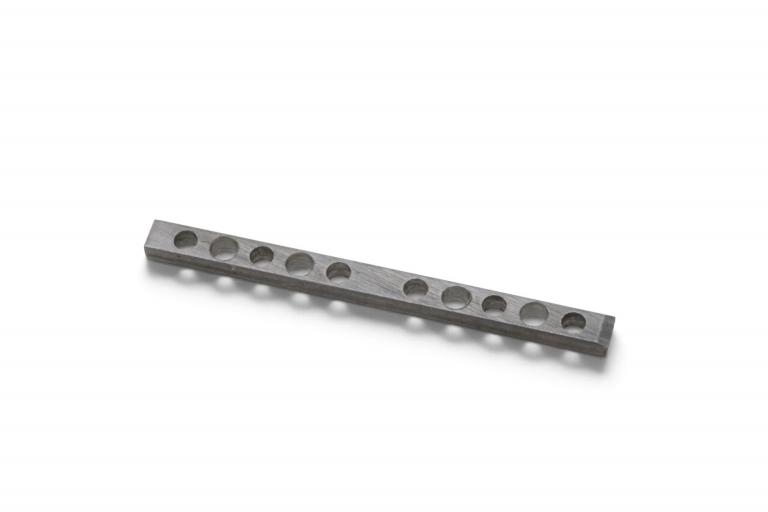

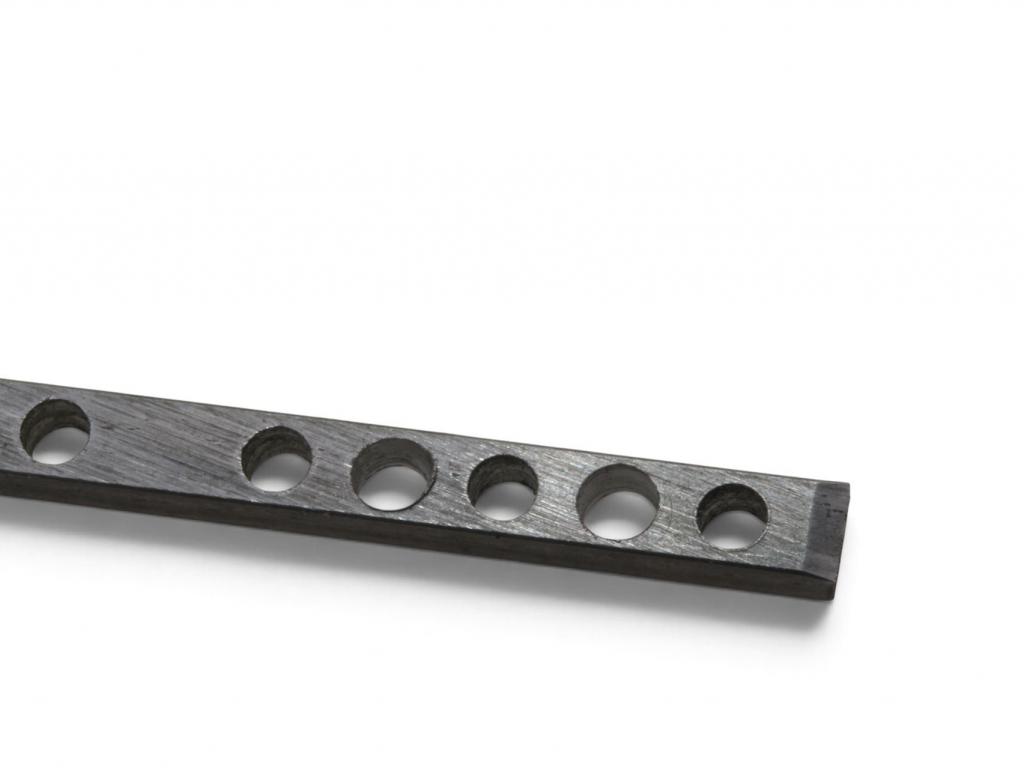

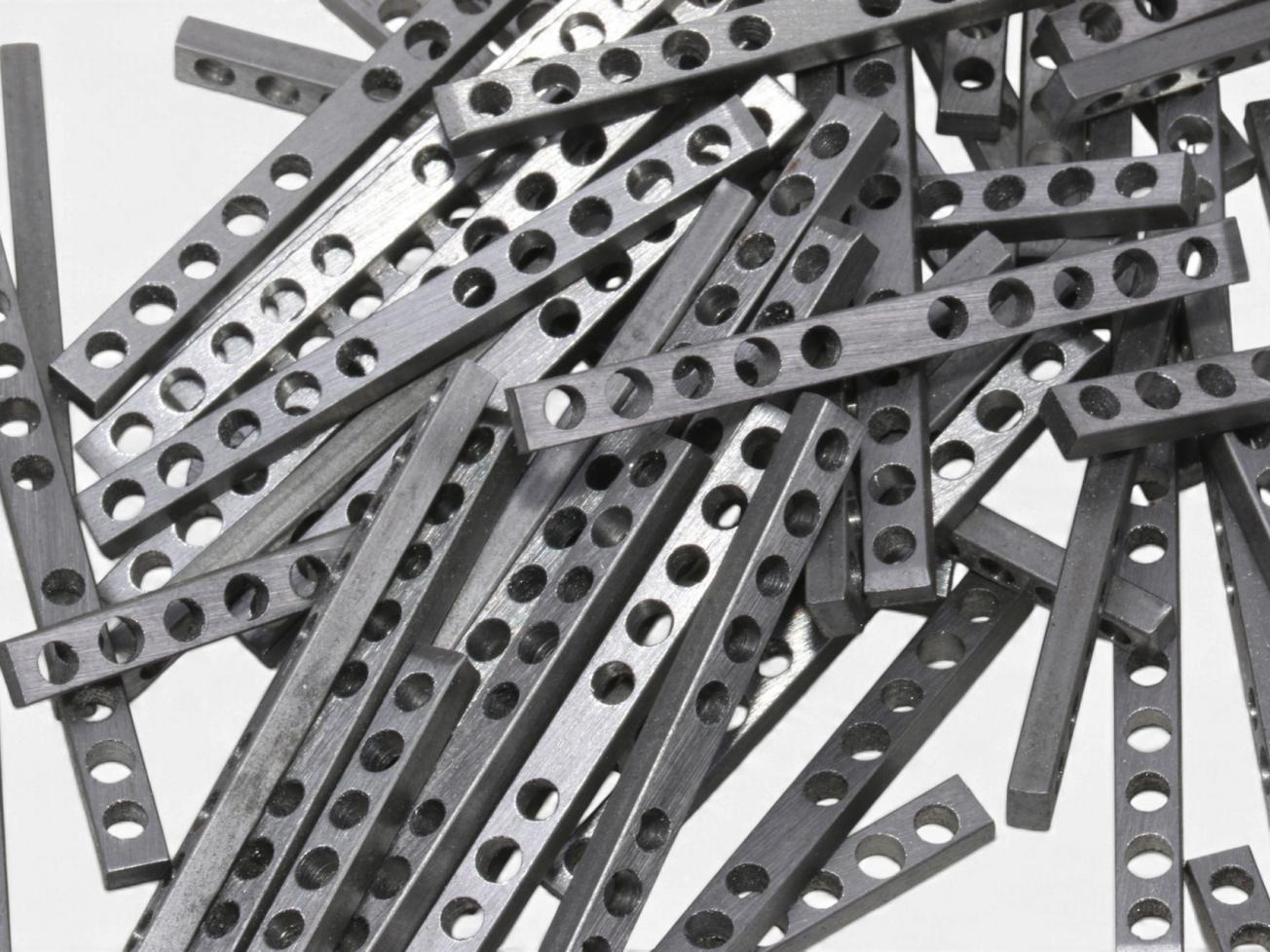

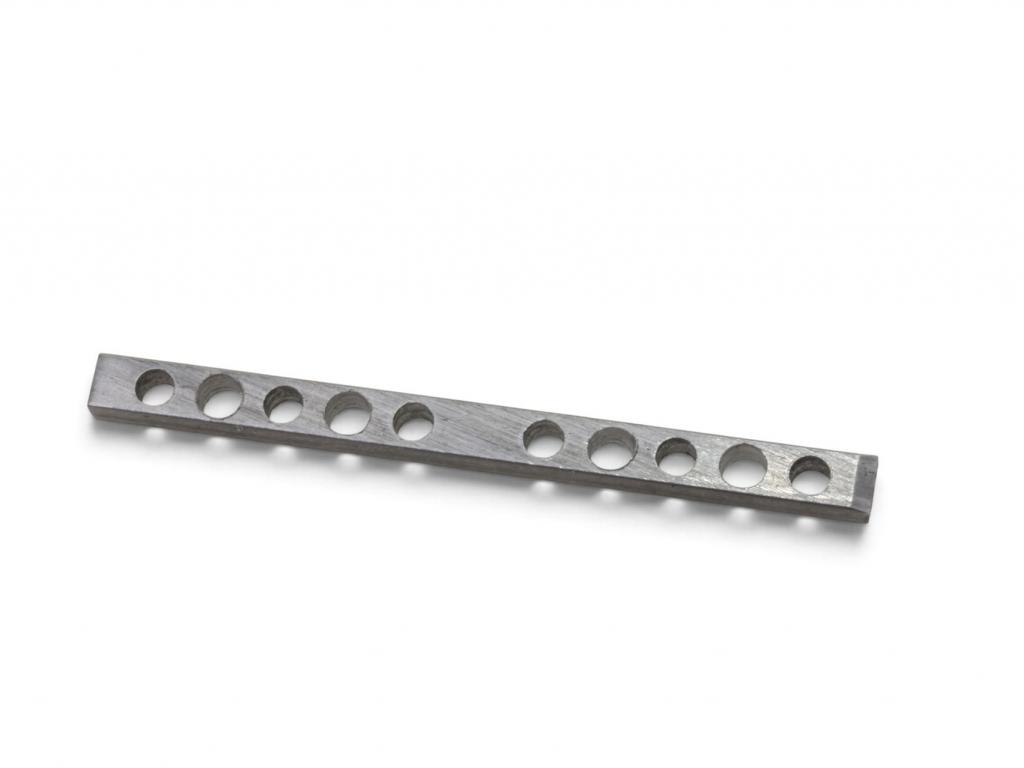

Vintage style Steel Barkeeper 49,2mm Set (2)

For all the customers want only the best and most authentic parts....its a lot more to build vintage correct parts, then copie just other ideas!

We did it.... vintage correct PAF 1016 steel bar keeper....not just the correct size and shape, we ordered 2 tons for Vintage 1016 steel (that was the min. qty.

the company asked for Customproduction!

Tonal Impact: Laboratory analyses have confirmed the authentic composition of this low-carbon vintage alloy. Based on our decades of experience with vintage guitars and their components, we believe this carefully selected material contributes to a sweet, rounded tone with exceptional clarity, transparency, and a beautifully balanced high-frequency response.

Because the Material Matters!™

Property Vintage Specification

Steel Grade SAE/AISI 1016

Material Low-Carbon Steel

Manufacturing Process Cold-Rolled Steel

Carbon Content Approx. 0.13–0.18%

Magnetic Properties Ferromagnetic

Surface Finish Raw, Unplated Steel

Modern Alternative SAE/AISI 1018

SOLD AS SET OF " Keeper Bars

------------------------------------------

These specifications are based on published investigations of vintage components rather than a verified original Gibson factory specification.

Why Does the Material Matter?

The Steel Keeper Bar is an essential part of the magnetic circuit in a traditional Gibson PAF humbucker. It connects the Alnico bar magnet to the adjustable polepiece screws.

Its magnetic permeability and material composition can influence magnetic flux distribution, pickup inductance, and resonance characteristics.

For historically accurate PAF reproductions, the correct steel alloy is therefore just as important as the dimensions and construction of the component.
