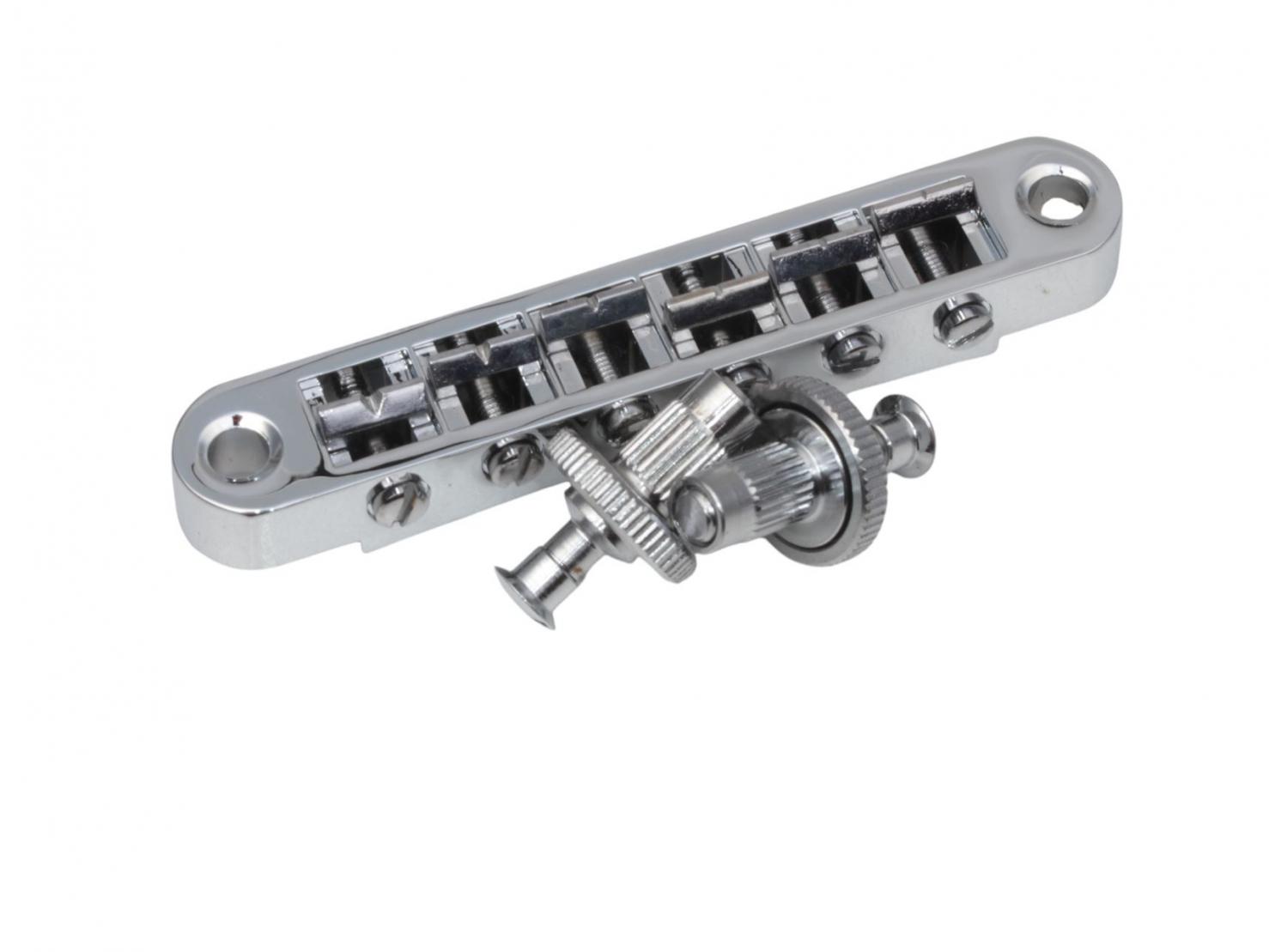

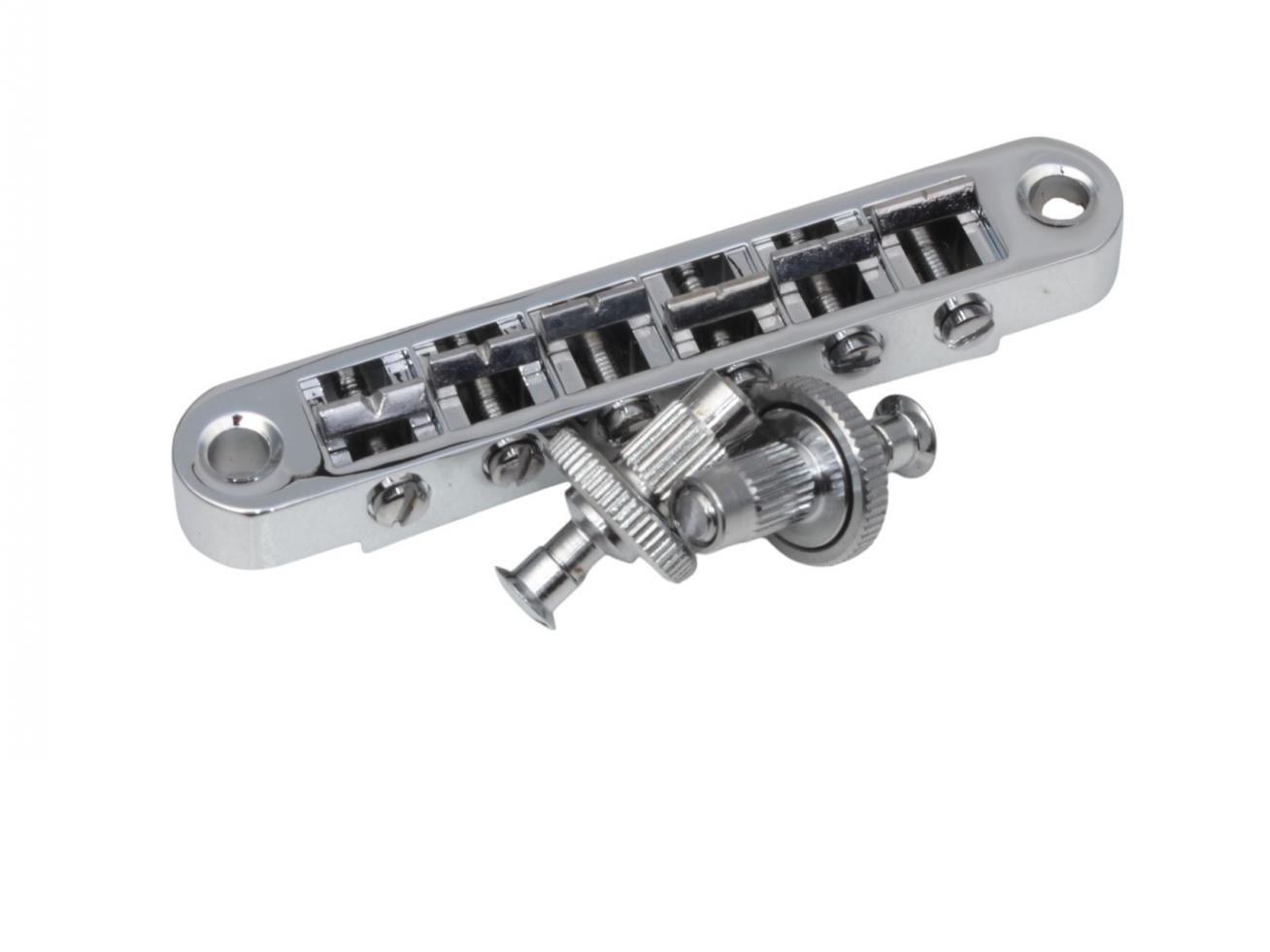

Lightweight Looking Nashville Alu TOM Chrome

Pinnacle Locking ALU - Tune-o-Matic Nashville US Bridge Chrome with CNC machined notched saddle

Lightweight Aluminum US Nashville Tune-o-Matic bridge

Made in the USA

Cast Aluminum body, zinc die-cast saddles, and brass bridge post/anchors

String-specific notched saddles

2"(50.8mm) E to e spacing

12" saddle radius

Direct fit for USA Gibson guitars

M5 x .8 threaded posts with 5mm diameter top section - **included posts must be used with bridge

2 15/16 stud spacing

The lightweight aluminum body weighs only 1.09 oz(30.7 grams) compared to the standard zinc diecast body at 1.87 oz(52.9 grams). Many believe that the aluminum tailpiece produces a better tone than the standard zinc diecast version...why not try an aluminum bridge!

Possibly the best locking Nashville bridge made for Gibson Les Paul guitars! The post and locking cap both have a rounded surface that mates perfectly to the round receptacle on the aluminum body. Prior to locking the bridge, the pivoting connection allows the bridge to self-center and tilt for proper bridge alignment. When locked down, this connection will have a larger contact path for better tone transmissions from the bridge to the guitar's body!

These are a direct replacement for a Gibson Nashville bridge as long as you use the include bridge posts. You do not have to remove the body anchors...they can be reused.

Pat# 9,922,625
